WIRE GAUGE AND SPOOL DIMENSIONS

Gauge of Wire

Metric size

Wire gauge

Metres per kilo

1.20mm  18g  113
1.00mm 19g   162
0.90mm 20g   200
0.80mm 21g   253
0.70mm 22g   331
0.60mm 23g  451
0.55mm 24g 536
0.53mm 24.5g 577
0.50mm 25g 649
0.46mm 26g 801
0.43mm 27g 877
1.20 x 1.10mm No 8 125
1.10 x 0.90mm No 7 171
1.00 x 0.80mm No 6 188
0.90 x 0.60mm No 5 271
0.90 x 0.55mm No 4 288
0.80 x 0.60mm No 3 322
0.80 x 0.55mm No 2 340
0.80 x 0.50mm No 1 362

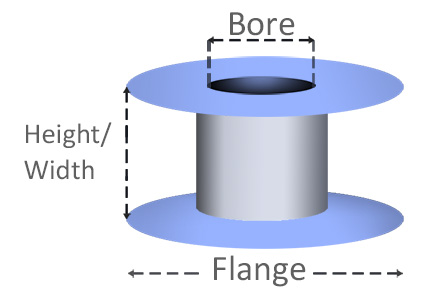

Dimensions of Reels (mm)

Reel Dimension

Spool

Flange

Diameter

Height/

Width

Bore

Easydrum 510 820 280
MP100 355 355 127
K355 355 200 36
BB35 255 166 33
BB20 200 180 30
BS15 300 100 50
BP4 155 64 18
BP2.5 140 57 18
